Metallic Blasting Media/

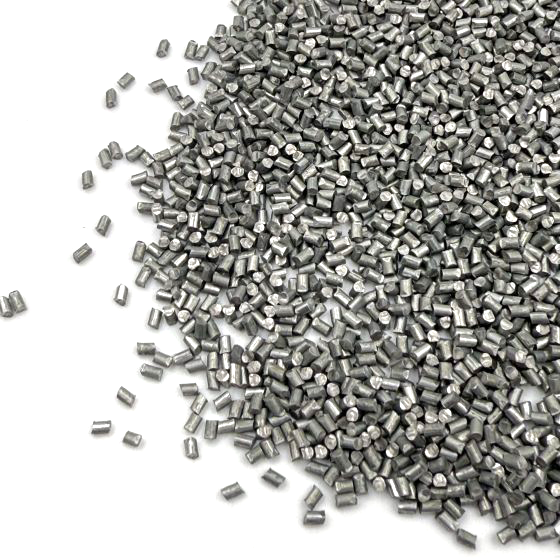

High Carbon Cut Wire Shot

Product name:High Carbon Steel Cut Wire Shot

Type:Blasting Media

Place Of Origin:Zhoushan, China

Shape:                         Cylindrical (As-cut or Conditioned Round Available)

Brand Name:LianShun

Usage:Sandblasting, Shot Peening, Surface Cleaning, Polishing

Abrasive Grain Sizes:Customized upon request

Color:Dark Gray / Metallic Gray

Hardness:HRC 51–55

Maximum Hardness Deviation: ±3.0 HRC

Density (Measured by Alcohol Displacement Method):7.4 g/cm³

Chemical Composition (Typical):

Carbon (C):0.65~0.85%

Manganese (Mn):0.60~1.0%

Silicon (Si):0.20~1.20%

Sulfur (S):≤0.030%

Phosphorus (P):≤0.030%

  • Product Details
  • Model Display

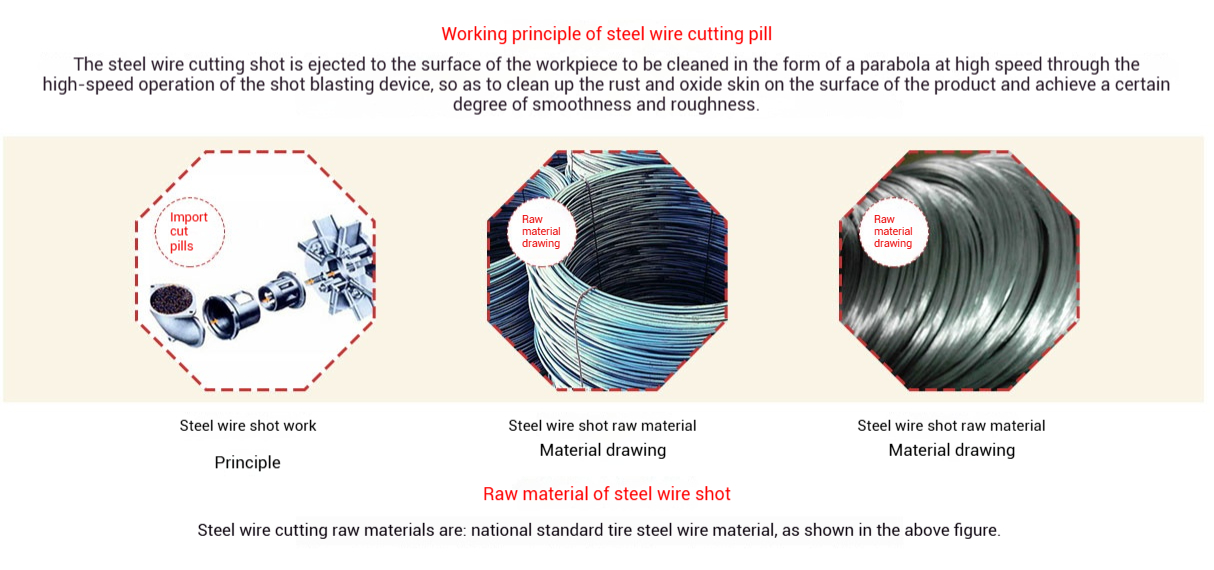

  • Working Principle

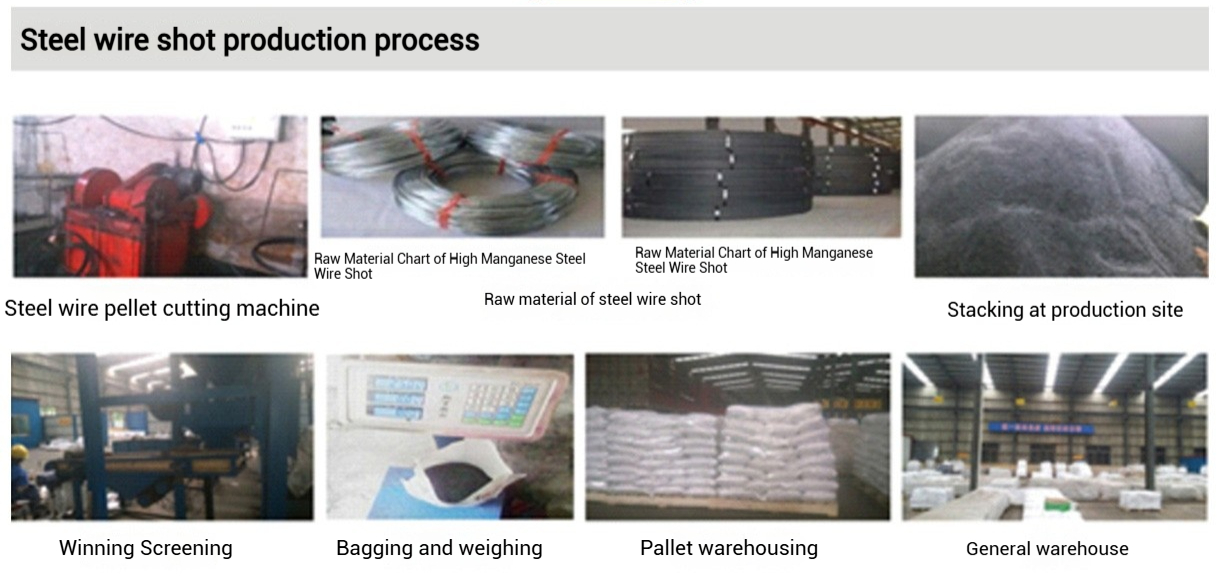

  • Workflow
  • Before and After Polishing Comparison
  • Packing

Description:

High carbon cut wire shot is produced by cutting high-carbon steel wire into uniform cylindrical or conditioned round particles. It is widely used in surface cleaning, rust removal, and shot peening of steel structures, ship hulls, bridges, and castings. With high hardness, excellent wear resistance, and an extremely low breakage rate, it offers consistent blasting performance, extended service life, and superior cost-efficiency.

Key Features:

  • High Hardness & Impact Strength: Effectively removes rust, scale, and surface contaminants from metal components.

  • Cylindrical or Conditioned Round Shape: Delivers consistent blasting with reduced surface damage.

  • Zero Breakage: Solid, pore-free structure ensures stable particle size and long-lasting blasting cycles.

  • Excellent Wear Resistance: Smooth surface and low fragmentation reduce dust, enhance safety, and lower maintenance costs.

  • Extended Reusability: Can withstand over 2,000 blasting cycles under standard operating conditions.

  • Customizable Sizes: Available in a wide range of diameters (0.5 mm – 3.5 mm) to fit different equipment and applications.

We offer a broad range of particle sizes to meet various sandblasting and surface finishing needs.

Specifications:

Appearance:Cylindrical or conditioned round

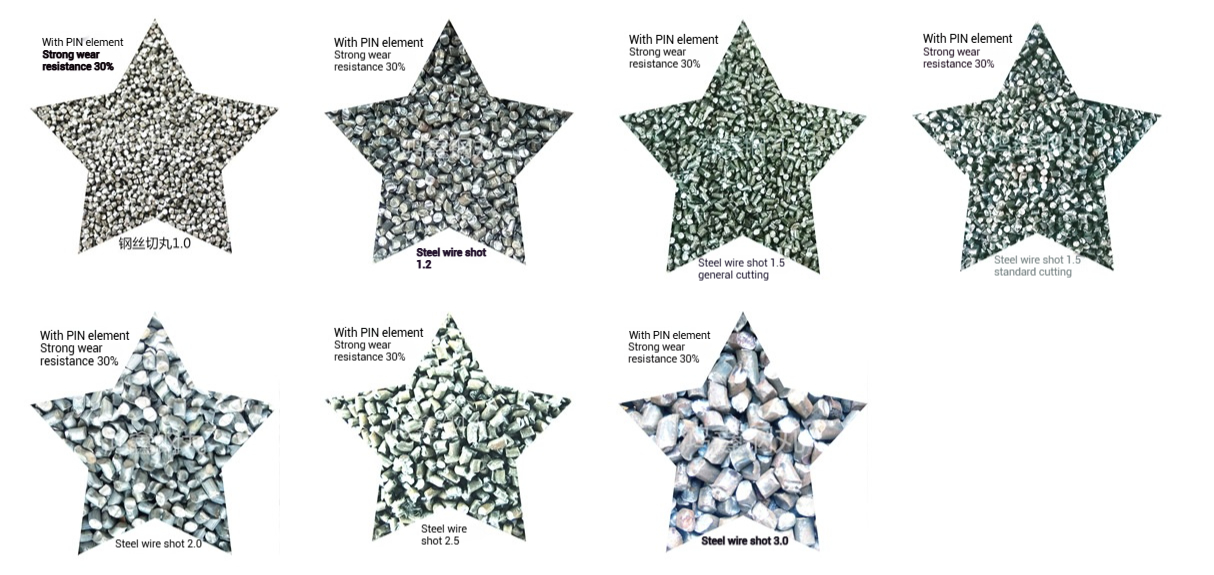

Particle Sizes (mm):0.5/0.8/1.0/1.2/1.4/1.7/2.0/2.2/2.5/3.0/3.5

Product Models:

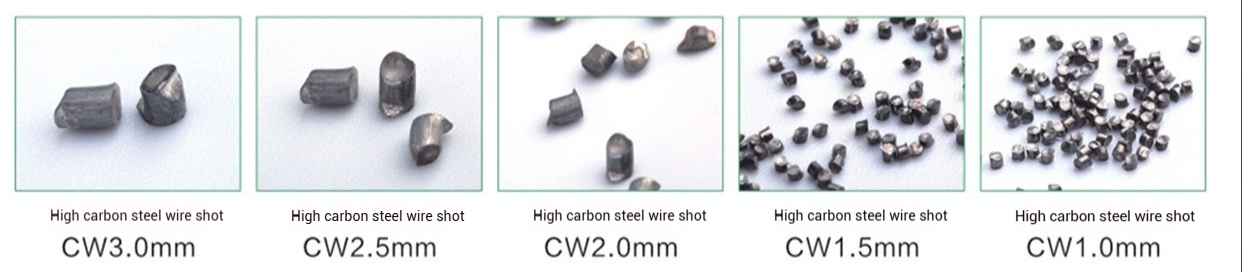

CW0.5mmCW0.8mmCW1.0mmCW1.2mmCW1.4mmCW1.7mm
CW2.0mmCW2.2mmCW2.5mmCW3.0mmCW3.5mm

Packaging Options:

  • 30 kg plastic woven bags, shrink-wrapped on export pallets (total: 1050 kg/pallet).
  • 1000 kg jumbo bags (woven polypropylene with 4 lifting loops).
  • Custom packaging available upon request.

Industry solutions:

  • Shot peening of automotive components
  • Surface cleaning of railway wheels and axles
  • Surface hardening of springs, gears, and bearings
  • Surface preparation in foundry and casting operations
  • Finishing of engine parts and precision-machined components
  • Surface treatment of heavy machinery and industrial equipment

Contact us for customized solutions, complete technical data sheets, or a free sample quote.
